Change Transmission Fluid on a Dodge Caravan Part 2: Filter and Cooling System

Key Takeaways

Compressed air can push significantly more old fluid out of the transmission than gravity draining alone
The transmission cooling system routes fluid through the radiator via two tubes — understanding this flow helps you drain more completely
Fluid flows from the transmission to the radiator through the lower tube and returns through the upper tube
Draining the cooler lines in addition to the pan gets you a more thorough fluid exchange
This is a supplemental step that makes the overall fluid change more effective

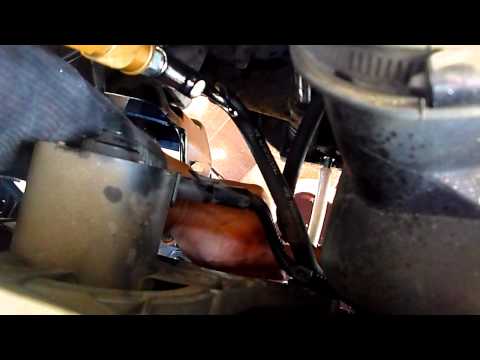

Using Air to Push Fluid Out

In Part 1, we covered draining the transmission pan and the basics of the job. This part adds an important technique: using compressed air to push additional old fluid out of the transmission system.

When you simply remove the pan and let gravity do its work, you typically drain only about half of the total transmission fluid. A significant amount remains trapped in the torque converter, the valve body passages, and the cooling lines. Using an air compressor to blow through the system forces much of this trapped fluid out.

How the Cooling System Works

To understand where all the fluid hides, it helps to know how the transmission cooling system is plumbed. On the Dodge Caravan, two tubes connect the transmission to the radiator:

Lower tube: Fluid flows from the transmission into the radiator through this tube
Upper tube: Cooled fluid returns from the radiator back to the transmission through this tube

The fluid makes a complete circuit: it leaves the transmission through the lower tube, passes through a small heat exchanger built into the radiator (where engine coolant absorbs heat from the transmission fluid), and then returns through the upper tube. This is why your transmission fluid gets hot — and why keeping it clean and at the right level is so important.

The Air Blow-Out Procedure

With the transmission pan removed and the drain complete:

Disconnect the cooler lines at the transmission or at the radiator (wherever is more accessible)
Apply low-pressure compressed air to one of the lines
Old fluid will be pushed out of the other line and out of the transmission passages
Catch all expelled fluid in your drain pan
Continue until you get mostly air and minimal fluid

Be careful with air pressure. You do not need a lot — 20 to 30 PSI is sufficient. High pressure could damage seals or internal components.

How Much More Fluid Do You Get?

The difference can be substantial. A pan-drop-only drain typically removes about 4 to 5 quarts from a Dodge Caravan transmission. Adding the air blow-out can increase that to 7 or 8 quarts. Since the total system capacity is roughly 9 to 10 quarts, you are replacing a much larger percentage of the old fluid.

This matters because the remaining old fluid mixes with your new fluid and immediately contaminates it to some degree. The more old fluid you remove, the cleaner your final result.

Inspecting While You Have Access

Since the pan is already off, take a few minutes to inspect what you can see:

Valve body: Look for any obvious damage or debris. Do not disassemble anything — just a visual check
Pan magnet: Clean the magnet thoroughly. A thin paste of fine metallic powder is normal. Chunks of metal or excessive debris is a warning sign
Pan interior: Wipe the inside of the pan clean. Look for any chunks or unusual deposits
Gasket surfaces: Make sure both the pan flange and the transmission housing mating surface are clean and smooth

What Comes Next

With the fluid drained as thoroughly as possible and the filter replaced, you are ready for the final steps. In Part 3, we cover reinstalling the pan, refilling with fresh ATF+4, and the critical test drive and level check procedure.

The air blow-out technique shown in this video is one of those tricks that separates a good DIY transmission service from a great one. It takes just a few extra minutes but results in a significantly cleaner fluid exchange.
