Change Transmission Fluid on a Dodge Caravan Part 1: Preparation and Draining

Key Takeaways

The Dodge Caravan transmission requires ATF+4 fluid — do not use ATF+3 or generic alternatives, even if they are cheaper
You will need a transmission filter and gasket kit, a 10mm wrench, and a drain pan
An air compressor can help push fluid out more completely and reduce mess
If the transmission pan does not come off easily with a mallet, use a screwdriver carefully to avoid damaging the pan or seal surface
Buy the gasket with 14 small holes so the screws hold it naturally during reinstallation

Why Change Your Transmission Fluid?

Automatic transmission fluid degrades over time. It accumulates metal particles from internal wear, clutch material debris, and heat-related breakdown products. Old, contaminated fluid cannot protect the transmission’s internal components as well as fresh fluid, which leads to accelerated wear, rougher shifting, and potentially expensive transmission failure.

A transmission fluid change on a Dodge Caravan is well within the abilities of a home mechanic. This three-part series covers the complete process. This first part focuses on preparation, draining, and pan removal.

What You Need

Fluid

You need ATF+4 (Automatic Transmission Fluid Plus 4). This is the Chrysler-specified fluid for these transmissions. While some people recommend the older ATF+3, which is cheaper, the overwhelming advice from experienced Caravan owners is to use ATF+4. The friction modifiers and additives are specifically formulated for these transmissions.

Plan on purchasing about five quarts, though the exact amount you will refill depends on how much old fluid you drain. I got mine from a local auto parts store for under $5 per quart.

Parts and Tools

Transmission filter and gasket kit — buy the gasket with 14 small bolt holes (not large holes), as the screws sit naturally in the smaller holes
10mm wrench or socket
Drain pan — large enough to catch 5-8 quarts of fluid
Rubber mallet — for loosening the transmission pan
Flathead screwdriver — as a backup pan removal tool, used carefully
Air compressor (optional) — for pushing fluid out more completely
Rags and cardboard — transmission fluid stains everything

Step-by-Step: Draining the Transmission

Getting Access

Park the vehicle on a level surface. If you need extra clearance to work underneath, check out our guide on how to raise a car without a jack for a simple, safe method.

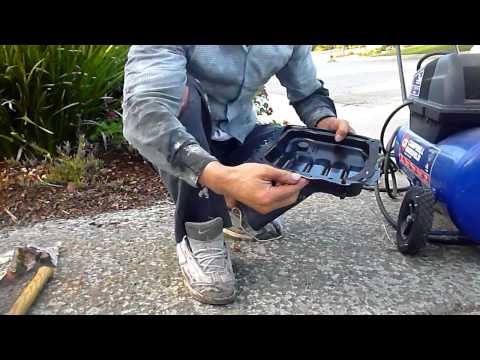

Removing the Transmission Pan

The Dodge Caravan transmission pan is held in place by 14 bolts (10mm). Start by loosening all the bolts slightly, but do not remove them yet. Then remove the bolts on one side completely while leaving the opposite side finger-tight. This allows the pan to tilt and drain the fluid in a controlled manner into your drain pan.

If the pan does not want to separate from the transmission housing after the bolts are out, give it a few taps with a rubber mallet around the edges. The old gasket may be stuck. If the mallet does not work, you can carefully insert a flathead screwdriver between the pan and the housing and gently pry. Be very careful not to gouge the sealing surfaces — any scratches or dents on the mating surfaces will cause leaks after reassembly.

Using an Air Compressor

If you have access to an air compressor, you can use compressed air to push additional fluid out of the transmission passages. This gets more of the old, contaminated fluid out than a simple gravity drain. Just be careful with the air pressure — you do not need a lot. A gentle blast is sufficient.

What You Will See Inside

Once the pan is off, you will have a clear view of the transmission filter and the bottom of the valve body. The old filter will likely be discolored and may have debris accumulated on it. This is normal and is exactly why you are doing this service.

You may also notice a magnet attached to the bottom of the transmission pan. This magnet collects metal shavings from normal wear. Clean it thoroughly before reinstalling the pan. A small amount of fine metallic paste on the magnet is normal. Large metal chunks or excessive debris could indicate internal transmission problems.

Coming Up in Part 2

In Part 2, we cover removing the old filter, installing the new one, and a closer look at how the transmission cooling system works through the radiator. Then in Part 3, we button everything up, refill with fresh ATF+4, and do the all-important test drive and level check.
